泛微OA Ecology9二开培训

1. 代码块-流程&建模

1.1 流程代码块

流程节点模板插入代码

场景1：请假流程，请假结束日期不能小于请假开始日期，否则给出提示信息，提示用户重新选择，并阻止流程提交

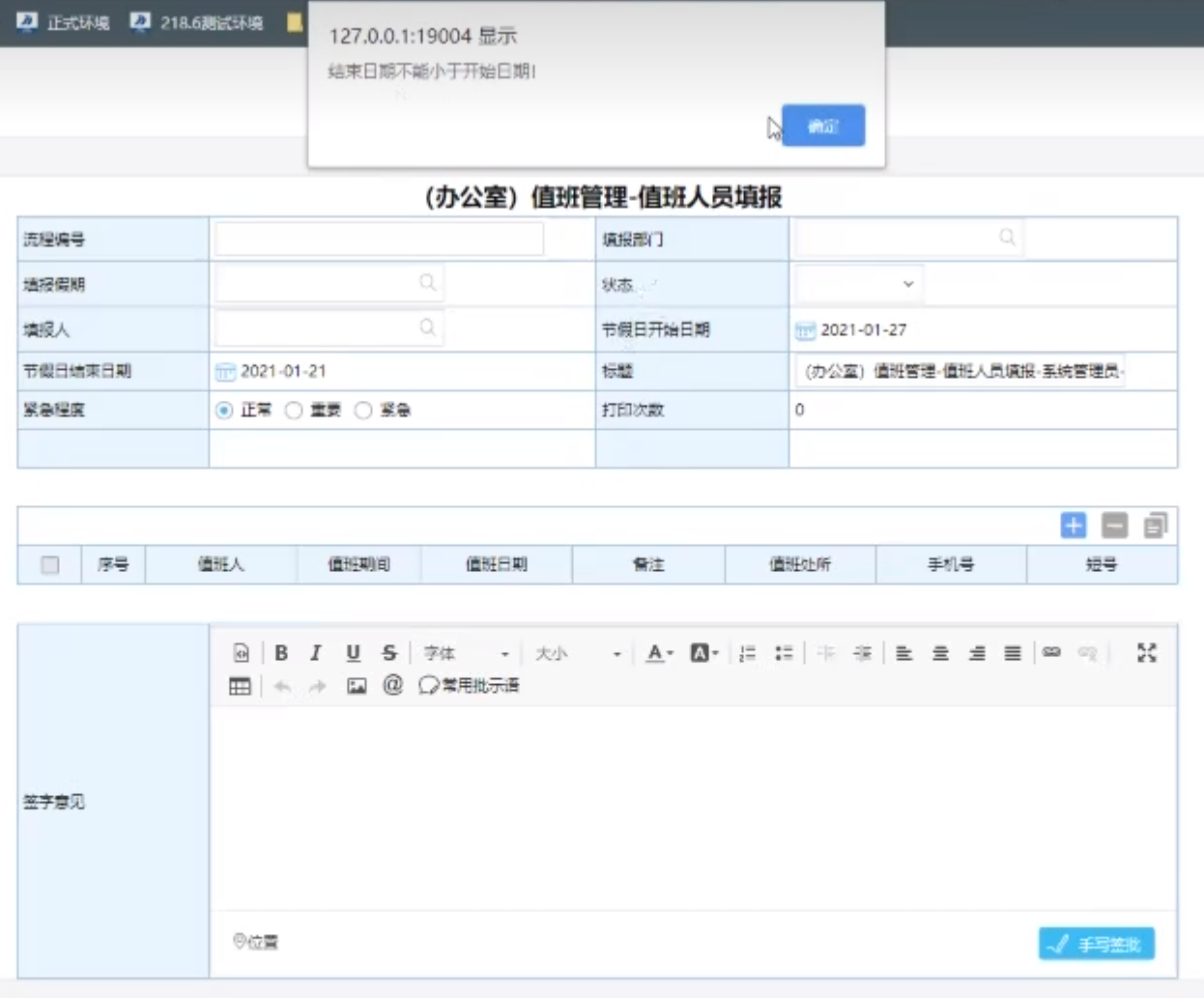

结束日期不能小于开始日期

function bindSave() {
  WfForm.registerCheckEvent(WfForm.OPER_SUBMIT, function(callback) {
    var jjrksrqId = WfForm.convertFieldNameToId("jjrksrq"); // 节假日开始日期ID
    var jjrjsrqId = WfForm.convertFieldNameToId("jjrjsrq"); // 节假日结束日期ID
    var jjrksrqv = WfForm.getFieldValue(jjrksrqId);	// 开始日期
    var jjrjsrqv = WfForm.getFieldValue(jjrjsrqId); // 结束日期
    if (jjrjsrqv < jjrksrqv) {
      alert("结束日期不能小于开始日期！");
    } else {
      callback(); // 继续提交需调用callback，不调用代表阻断
    }
  });
}

场景2：值班信息填报流程：根据选择的节假日带出的节假日开始日期和节假日结束日期,，并自动生成对应明细行，让用户填报值班信息。

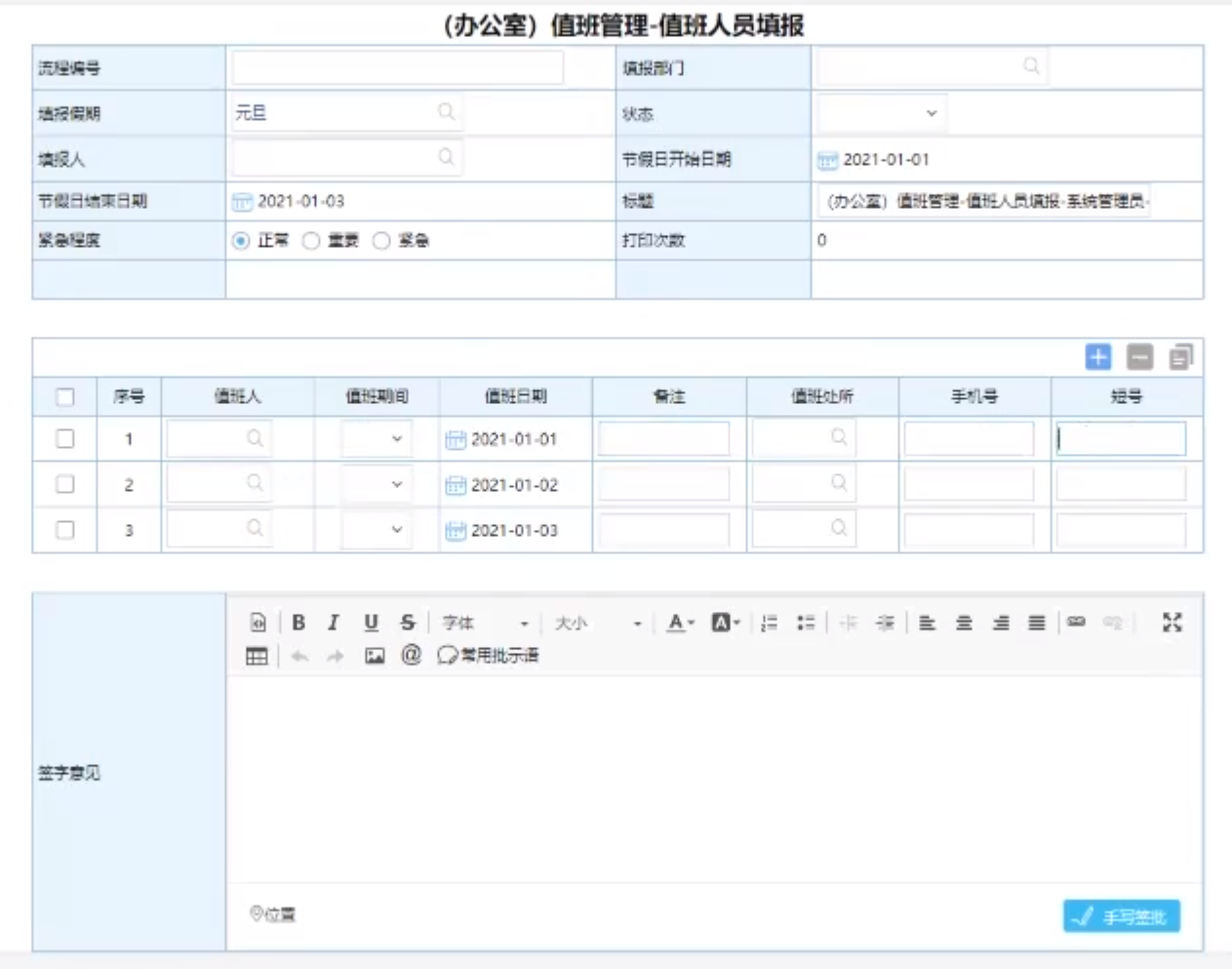

根据选择的日期自动生成明细行

function bindTBJQ() {
  var tbjqid = WfForm.convertFieldNameToId("tbjq"); // 填报假期ID
  var jjrksrqId = WfForm.convertFieldNameToId("jjrksrq"); // 节假日开始日期ID
  var jjrjsrqId = WfForm.convertFieldNameToId("jjrjsrq"); // 节假日结束日期ID
  var zbrqid_1 = WfForm.convertFieldNameToId("zbrq", "detail_1"); // 值班日期ID
  WfForm.bindFieldChangeEvent(jjrjsrqId, function(obj, id, value) {
    var jjrksrqv = WfForm.getFieldValue(jjrksrqId);	// 开始日期
    var jjrjsrqv = WfForm.getFieldValue(jjrjsrqId); // 结束日期
    var ksrqDate = new Date(jjrksrqv.replace(/-/g, "/"));
    var ksDate = new Date(jjrksrqv.replcace(/-/g, "/")).getTime()/1000;
    var jsDate = new Date(jjrjsrqv.eplcace(/-/g, "/")).getTime()/1000;
    var endTime = parseInt(jsDate) - parseInt(ksDate);
    var timeDay = parseInt(endTime/86400);
    for(var i=0; i<=timeDay; i++) {
      var dtrow = {};
      if(i > 0) {
        ksrqDate.setDate(ksrqDate.getDate() + 1);
      }
      var rq = ksrqDate.getFullYear() + "-" + (ksrqDate.getMonth() + 1) + "-" + ksrqDate.getDate();
      dtrow[zbrqid_1] = {value:rq, specialobj:[{id:rq, name:rq}]};
      WfForm.addDetailRow("detail_1", dtrow);
    }
  });
}

上面两个函数需要放在页面初始化后绑定

JQuery().ready(function(){
  pageInitFun();
});

function pageInitFun() {
  bindTBJQ();
  bindSave();
};

1.2 建模代码块

场景1：查询列表，启用停用台账数据

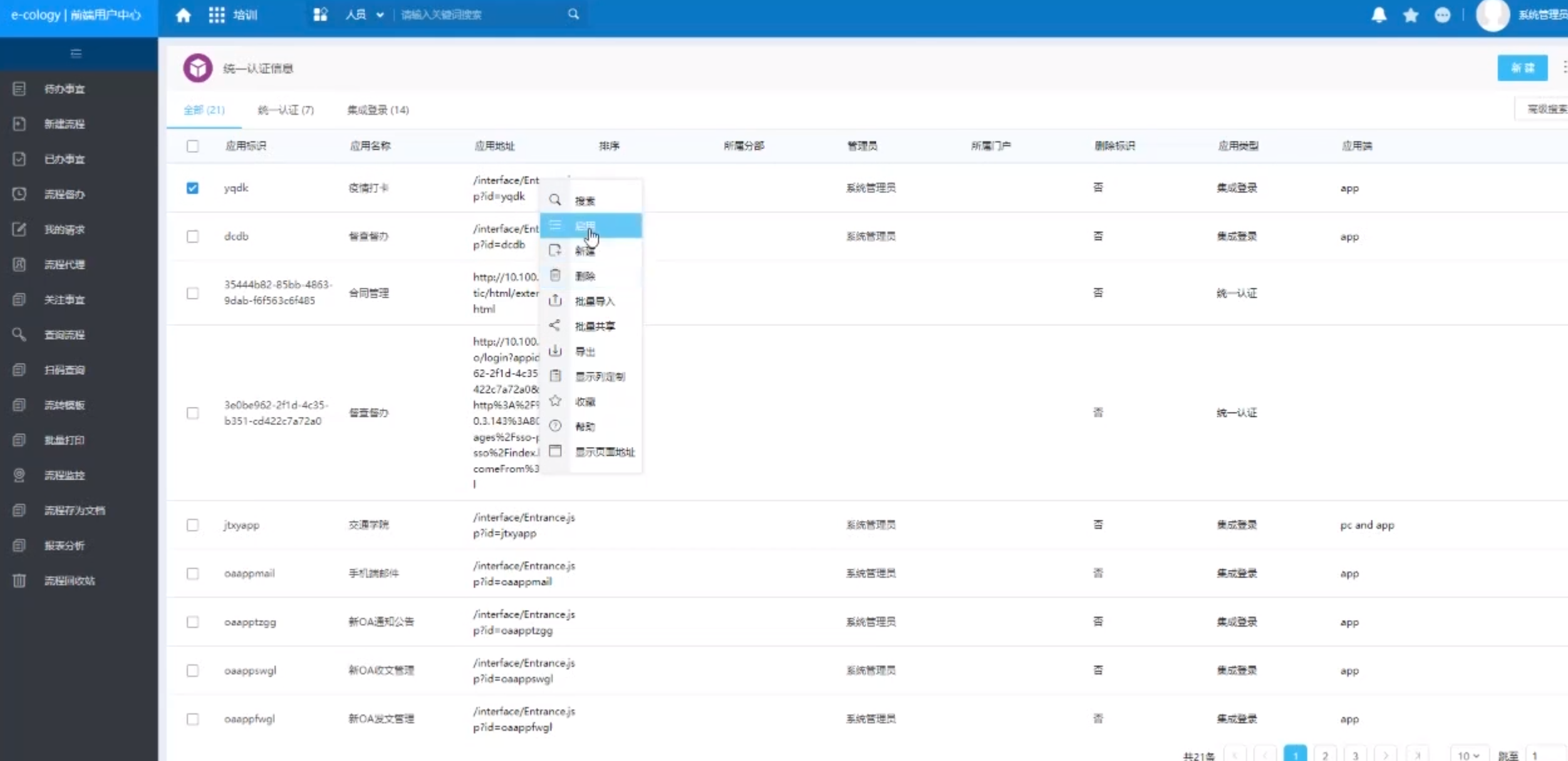

启用/停用台账数据

建模引擎->应用建模->模块->页面扩展

javascrpt:aa();
function aa() {
  var ids = _xtable_CheckedCheckboxId();
  alert(ids + "启用成功");
  // 写请求传递到后台，把启用表示更新
}

场景2：建模保存后调用第三方接口回传数据，判断是否存在重复数据（比如供应商录入，不允许相同名称重复录入），存在则提示用户存在重复数据，不允许保存。

建模引擎->应用建模->模块->页面扩展->接口动作（涉及后端，后面再讲）

或者

建模引擎->应用建模->模块->基础->新建布局->插入->E9代码块

<script type="text/javascript">
$(function() {
  var appid_id = ModeForm.convertFiledNameToId("appid");
  ModeForm.bindFieldChangeEvent(appid_id, function(obj, id, value) {
    console.log("值改变--", obj, id, value);
  })
});

windows.checkCustomize = () => {
  var flag = false;
  alert("重复创建不允许保存，请检查数据");
  return flag;
}
</script>

2. Ecode无侵入组件复写&重写

http://ip:port/ecode

进入Ecode页面定制开发，具体如何书写可以参考示例

书写完成后鼠标右键文件夹菜单点击发布

2.1 组件复写

参考资料：https://e-cloudstore.com/doc.html

组件库：https://e-cloudstore.com/e9/index2.html

场景1：待办流程页面，隐藏部分Tab内容

const enable = true

const getLb = (id, name) => {
  const {WeaLocaleProvider} = ecCom;
  const getLabel = WeaLocaleProvider.getLabel;
  return getLabel(id, name);
}

// 复写Tabs，或者复写WeaTab参数处理，两种方式取其一
ecodeSDK.overwritePropsFnQueueMapSet('Tabs', {
  fn:(newProps) => {
    if (!enable) return;
    const {hash} = window.location;
    if(!hash.startsWith('#/main/workflow/listDoing')) return;
    console.log(newProps);
    let datas = newProps.datas;
    let children = newProps.children;
    let newDatas = [];
    let newChildren = [];
    for(let i=0;i<datas.length;i++) {
      // 去掉督办
      if(datas[i].groupid!="flowSup") {
        newDatas.push(datas[i]);
        newChildren.push(children[i]);
      }
    }
    newProps.datas=newDatas;
    newProps.children=newChildren;
    return newProps;
  }
});

场景2：新建流程页面复写顶部按钮

const enable = true

// 复写顶部按钮，或者复写WeaTop组件的buttons参数处理，两种方式取其一
ecodeSDK.overwritePropsFnQueueMapSet('Button', {
  fn:(newProps) => {
    if (!enable) return;
    const {hash} = window.location;
    if(!hash.startsWith('#/main/workflow/req')) return;
    console.log(newProps);
    if(newProps.title=="提交") {
      newProps.title="发送";
      newProps.children.props.children="发送";
      newProps.onClick=function() {
        alert("发送！");
      };
    }
    if(newProps.title==”保存") {
      newProps.disabled=true;
    }
    return newProps;
  }
});

2.2 组件重写

注：如何找到组件的源码？

前台：/pc4mobx/[模块名]/index.js
后台：/pc4backstage/[模块名]/index.js

比如

流程表单 /pc4mobx/workflowForm/index.js
流程 /pc4mobx/workflow/index.js
流程后台 /pc4backstage/workflow/index.js

场景1：新建流程页面增加新页签newTabs

index.js

const { weaTab } = ecCom;

class NewTab extends React.Component {
  getDatas = () => {
    const { data = [] } => this.props;
    if (!datas.find((data) => data.key === 'newTab')) {
      let newTab = {
        key: 'newTab',
        title: '',
      };
      $.ajax({
        url: "/api/newworkflow/getParentSubcompData",
        data: {},
        async: false,
        dataType: "json",
        success: function(res) {
          if(res.api_status) {
            let tabs = res.data;
            for(let i=0;i<tabs.length;i++) {
              let row=tabs[i];
              if (i==0&&row.companyname="CCTV") {
                newTab.title=row.companyname;
                datas.push(newTab);
              }
            }
          } else {
            message.error(res.msg || '接口调用失败!');
          }
        }
      });
    }
    return datas;
  }

  getStore = () => {
    if (window.weaWorkfolw && window.weaWorkflow.store.wfAddStore) {
      return window.weaWorkflow.store.wfAddStore;
    }
    return {};
  }

  onChange = (tabKey) => {
    const { onChange } = this.props;
    const wfAddStore = this.getStore();
    const { lastWftypes } = wfAddStore;
    if (!wfAddStore['lastWftypes'] || (wfAddStore['lastWftypes'] && wfAddStore['lastWftypes'].length === 0)){
      wfAddStore['lastWftypes'] = [...wfAddStore.wftypes];
      wfAddStore['compWftypes'] = [...wfAddStore.wftypes];
      let compWftypes=wfAddStore['compWftypes'];
      $.ajax({
        url: "/api/newworkflow/getNewWorkflowTabTypeIds",
        data: {},
        async: false,
        dataType: "json",
        success: function(res) {
          if(res.api_status) {
            let wftype = "," + res.wftype + ",";
            let nowWftypes = [];
            for(let i=0;i<compWftypes.length;i++) {
              let compWftypesid = ',' + compWftypes[i].id + ',';
              if (wftype.indexOf(compWftypesid) >= 0) {
                nowWftypes.push(nowWftypes[i]);
              }
            }
            wfAddStore['nowWftypes'] = nowWftypes;
          } else {
            message.error(res.msg || '接口调用失败!');
          }
        }
      });
    }
    if (tabKey === 'newTab') {
      wfAddStore.wftypes = wfAddStore['nowWftypes'];
    } else {
      $.ajax({
        url: "/api/workflow/createreq/wfinfo?needall=1&menuIds=1%2C12&tabkey=newTab&__radom__=16092080808589",
        data: {},
        async: false,
        dataType: "json",
        success: function(res) {
          wfAddStore.wftypes=res.datas;
        }
      });
    }
    if (typeof onChange === 'function') onChange(tabKey);
  }

  render() {
    let {selectedKey, isfirstselect} = this.props;
    if (isfirstselect == "1") {
      selectedKey = "newTab";
      isfirstselect = "2";
      const wfAddStore = this.getStore();
      const { lastWftypes } = wfAddStore;
      if (!wfAddStore['lastWftypes'] || (wfAddStore['lastWftypes'] && wfAddStore['lastWftypes'].length === 0)){
        wfAddStore['lastWftypes'] = [...wfAddStore.wftypes];
        wfAddStore['compWftypes'] = [...wfAddStore.wftypes];
        let compWftypes=wfAddStore['compWftypes'];
        $.ajax({
          url: "/api/newworkflow/getNewWorkflowTabTypeIds",
          data: {},
          async: false,
          dataType: "json",
          success: function(res) {
            if(res.api_status) {
              let wftype = "," + res.wftype + ",";
              let nowWftypes = [];
              for(let i=0;i<compWftypes.length;i++) {
                let compWftypesid = ',' + compWftypes[i].id + ',';
                if (wftype.indexOf(compWftypesid) >= 0) {
                  nowWftypes.push(nowWftypes[i]);
                }
              }
              wfAddStore['nowWftypes'] = nowWftypes;
            } else {
              message.error(res.msg || '接口调用失败!');
            }
          }
        });
      }
      wfAddStore.wftypes = wfAddStore['nowWftypes'];
      wfAddStore.tabKey = "newTab";
      wfAddStore.initParams.tabkey = "newTab";
      wfAddStore.changeTab("newTab");
    }
    return {
      <div>
        <WeaTab _noOverWrite {...this.props} datas={this.getDatas()} onChange={this.onChange} />
      </div>
	}
  }
}

ecodeSDK.setCom('${appId}', 'NewTab', NewTab);

init.js

const NewTab = (props) => {
  const acParams = {
    appId: '${appId}',
    name: 'newTab',
    isPage: false,
    noCss: true,
    props,
  }
  return ecodeSDK.getAsyncCom(acParams);
}

window.addEventListener('hashchange', () => {
  localStorage.setItem("isfristselect", "1");
})

localStorage.setItem("isfristselect", "1");

ecodeSDK.overwriteClassFnQueueMapSet('WeaTab', {
  fn:(Com, newProps) => {
    console.log(newProps);
    if(newProps._noOverwrite) return;
    if(windows.location.hash.indexOf('/main/workflow/add') >= 0) {
      let tabs = newProps.datas;
      if (tabs.length >= 3 && localStorage.getItem("isfirstselect") == "1") {
        if (newProps.isfirstselect && newProps.isfirstselect == "2") {
        } else {
          newProps.isfirstselect = "1";
          newProps.selectedKey = "newTab";
          localStorage.setItem("isfristselect", "2");
          window.weaWorkflow.store.wfAddStore.tabkey="newTab";
          window.weaWorkflow.store.wfAddStore.initParams.tabkey="newTab";
          window.weaWorkflow.store.wfAddStore.changeTab("newTab");
        }
      }
      return {
        com: newTab,
        props: newProps;
      }
    } else {
      localStorage.setItem("isfristselect", "1");
    }
  }
})

3. Ecode前端接口拦截

场景：新建流程页面增加按钮获取第三方数据

ecodeSDK.overwriteApiDataQueueMapSet({
  fn: (url, params, datas) => {
    if (url.indexOf('/api/workflow/createreq/wfinfo') >= 0) {
      $.ajax({
        url: "/api/newworkflow/getParentSubcompData",
        data: {},
        async: false,
        dataType: "json",
        success: function(res) {
          if(res.api_status) {
            let tabs = res.data;
            for(let i=0;i<tabs.length;i++) {
              let row=tabs[i];
              if (i==0&&row.companyname="CCTV") {
                datas.tabs.push({title: row.companyname, key: "newTab"});
                datas.userOperationHabit.defaultSelectedTab="newTab";
                let tabdata = datas.datas;
                let newtabdata = [];
                for(let j=0; j<tabdata.length; j++) {
                  if((","+row.lcljlx+",").indexOf(","+tabdata[j].id+",")>=0) {
                    newtabdata.push(tabdata[j]);
                  }
                }
                datas.lastdatas=tabdata;
                datas.data=newtabdata;
              }
            }
          } else {
            message.error(res.msg || '接口调用失败!');
          }
        }
      });
    }
  }
}

4. Ecode自定义页面

场景：值班信息页面

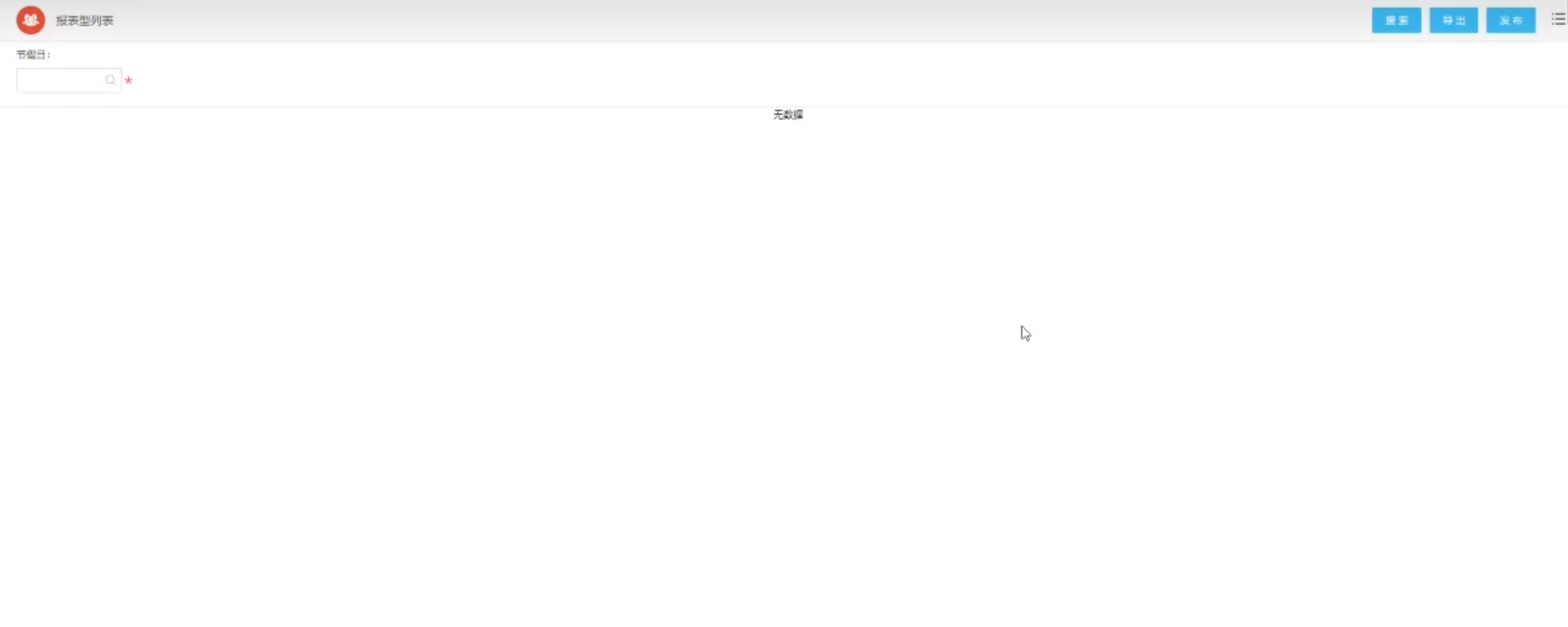

值班信息页面

apis文件夹下index.js

const { WeaTools } = ecCom;

// 获取高级搜素条件
const getCondition = params => {
  return WeaTools.callApi('/api/skj/abxxCondition', 'GET', params);
};

// 获取报表数据
const getDatas = params => {
  return WeaTools.callApi('/api/skj/zbxxReport', 'GET', params);
};

// 生成文档
const publishDoc = params => {
  return WeaTools.callApi('/api/skj/publishDoc', 'POST', params);
};

// 导出
const outExcel = params => {
  return WeaTools.callApi('/api/skj/zbxxOutExcel', 'GET', params);
};

const API = {
  getCondition,
  getDatas,
  publishDoc,
  outExcel
}

ecodeSDK.exp(API);

utils文件夹index.js

const { Spin } = antd;
const { WeaLocaleProvider, WeaAlertPage } = ecCom;
const getLabel = WeaLocaleProvider.getLabel;

// 页面加载中效果处理
const renderLoading = (loading) => {
  <div className="wea-demo-loading">
    <Spin spinning={loading} />
  </div>
}

// 无权限处理
const renderNoright = () => {
  <WeaAlertPage>
    <div>
      {getLabel(2012, "对不起，您暂时没有权限!")}
    </div>
  </WeaAlertPage>
}

// 暂无数据处理
const renderNoData = () => {
  <WeaAlertPage>
    <div>
      暂无数据
    </div>
  </WeaAlertPage>
}

const utils = {
  renderLoading,
  renderNoright,
  renderNoData,
}

ecodeSDK.exp(utils);

style文件夹（右键该文件夹启用前置加载）下的report.css

.zbxx {
  width: 100%;
  height: 100%;
}

.zbxx .wea-tab{
  padding: 0 20px;
}

.zbxx-datas {
  padding: 30px 20px 0 20px;
}

.zbxx td{
  border: 1px; solid;
}

.zbxx th{
  border: 1px solid;
}

.zbxx table {
  border-collapse: collapse;
  width: 100%;
}

.zbxx td {
  text-align: center
}

stores文件夹下index.js

const ReportStore = ecodeSDK.imp(ReportStore);

const allStore = {
  reportStore: new ReportStore();
};

ecodeSDK.exp(allStore);

stores文件夹下report.js

const { observable, action, toJS } = mobx;
const { message } = antd;
const { WeaForm } = comsMobx;

const API = ecodeSDK.imp(API);

class ReportStore {
  @observable form = new WeaForm();
  @observable loading = true;
  @observable hasRight = true;
  @observable condition = [];
  @observable datas = [];
  @observable colnameArr = [];
  @observable excel='';

  @action
  doInit = () => {
    this.getCondition();
    this.getDatas();
  }

  @action
  getCondition = () => {
    API.getCondition().then(action(res => {
      if (res.api_status) {
        this.condition = res.condition;
        this.form.initFormFields(res.condition);
      } else {
        message.error(res.msg || '接口调用失败!');
      }
    }))
  }

  @action
  getDatas = (params) => {
    this.loading = true;
    API.getDatas().then(action(res => {
      if (res.api_status) {
        this.datas = res.data;
        this.colnameArr=res.colname;
        this.hasRight=res.hasRight;
      } else {
        message.error(res.msg || '接口调用失败!');
      }
    }))
    this.loading = false;
  }
}

coms文件夹下的index.js

const { inject, observer } = mobxReact;
const { toJS } = mobx;
const { Button, message } = antd;
const { WeaSwitch } = comsMobx;
const { WeaTop, WeaTab, WeaRightMeanu, WeaReport, WeaFormItem, WeaMewScroll} = ecCom;

const { renderNoright, renderLoading } = ecodeSDK.imp(utils);

@inject('reportStore')
@observer
class Report extends React.Component {
  static defaultProps = {
    prefixCls: "zbxx"
  };

  componentWillMount() {
    const { reportStore: { doInit }} = this.props;
    doInit();
  }

  componentWillReceiveProps(nextProps) {
    const { reportStore } = this.props;
    if (this.props.location.key !== nextProps.location,key) {  // 手动刷新，切换菜单重新初始化
        reportStore.doInit();
    }
  }
  exportExcel = () => {
    const { reportStore: { outExcel, form }} = this.props;
    const params = form.getFormParams();
    console.log("paramsexcel", params);
    outExcel(params);
  }
  expExcel = () => {
    const { reportStore: { outExcel1, form }} = this.props;
    const params = form.getFormParams();
    console.log("paramsexcel", params);
    outExcel(params);
  }
  publishDoc = () => {
    const { reportStore: { publishDoc, form }} = this.props;
    const params = form.getFormParams();
    console.log("publishDoc", params);
    publishDoc(params);
  }
  doSearch = () => {
    const { reportStore: { getDatas, form }} = this.props;
    const params = form.getFormParams();
    console.log("params=", params);
    if(params.jjr==""){
      message.info("请先选择节假日!")
    } else {
      getDatas(params);
    }
  }
  getSearchsAdQuick = () => {
    const { reportStore: { form, condition }} = this.props;
    const { isFormInit } = form;
    const arr = [];
    if(isFormInit) {
      const c = toJS(condition)||[];
      c.length>0&&c[0].items.map(field=>{
        arr.push(
          <WeaFormItem
            label={`${field.label}`}
            labelCol={{span: `${field.labelcol}`}}
            wrapperCol={{span: `${field.fieldcol}`}}
          >
            <WeaSwitch fieldConfig={field} form={form} />
          </WeaFormItem>
        );
      });
    }
    return arr;
  }
  render() {
    const { reportStore, prefixCls } = this.props;
    const { loading, hasRight, form, datas, colnameArr } = reportStore;

    if (!hasRight && !loading) {
      return renderNoRight();
    }

    const rightMenu = [
      {
        key: 'BTN_EXP',
        icon: <i className='icon-coms-Restore' />
        content: '导出',
        onClick: this.expExcel,
      },
    ];
    const rightMenu = [
      {
        key: 'BTN_EXP',
        icon: <i className='icon-coms-Restore' />
        content: '导出',
        onClick: this.expExcel,
      },
    ];
    const collectParams = {
      favname: '报表型列表',
      favouritetype: 1,
      objid: 0,
      link: 'wui/index,html#/ns_demo08/index',
    };
    const adBtn = [
      <Button type="primary" onClick={this.doSearch}>搜索</Button>
      <Button type="ghost" onClick={() => form.resetForm()}>重置</Button>
      <Button type="ghost" onClick={() => setShowSearchAd(false)}>取消</Button>
    ];
    const btns = [
      <Button type="primary" onClick={this.doSearch}>搜索</Button>
      <Button type="primary" onClick={this.expExcel1}>导出</Button>
      <Button type="primary" onClick={this.publishDoc}>发布</Button>
    ];

    let colname=toJS(colnameArr);
    let ksdata=toJS(datas);
    ksdata=JSON.parse(JSON.stringify(ksdata));
    return (
      <div className=(prefixCls)>
        <WeaRightMenu
          datas={rightMenu}
          collectParams={collectParams}
        >
          <WeaTop
            title="报表型列表"
            icon={<i className='icon-coms-meeting' />}
            iconBgcolor='#F14A2D'
            buttons={btns}
            showDropIcon={true}
            dropMenuDetail={rightMenu}
            dropMenuProps={{ collectParams }}
          >
            <WeaNewScroll height={'100%'}>
              <WeaTab
                searchAdQuick={this.getSearchchsAdQuick()}
                buttomAdQuick={[<Bytton type="primary" style={{display:"none"}} onClick={this.doSearch}>搜索</Button>]}
              />
              {
               loading?renderLoading() : colname && clolname.length>0 ? (
                 <div className={`${prefixCls}-data`}>
                   <table border="1">
                     <tr>
                       <th colspan="2">值班人员</th>
                       {
                         colname.map((c, index) => { return {<th>{c}</th>}, this)
                       }
                     </tr>
                     {
                       ksdata.map((ks, index) => {
                         let data = ks.data;
                         return ( <TR ksdata={ks} ></TR>)
                       }, this)
                     }
                 </table>
               ) : (<div style={{textAlign:"center"}}>元数据</div>)
              }
            </WeaNewScroll>
          </WeaTop>
        </WeaRightMenu>
      </div>
    )
  }
}

ecodeSDK.exp(Report);

class TR extends React.component {
  render() {
    const {ksdata} = this.props;
    let trdata = ksdata.data;
    return {
      trdata.map((tr, idnex) => {
        let data = tr.zbdata;
        return (
          <TRow data={data} trindex={index} ksmc={ksdata.ksmc} csrownum={ksdata.csrownum} rownum={tr.rownum}></TRow>
        )
      },this)
    }
  }
}

class TRow extends React.component {
  render() {
    const {data, trindex, ksmc, csrownum, rownum} = this.props;
    return {
      data.map((trow, idnex) => {
        if(index==0)} {
          return (
            <tr>
              <th rowspan=(csrownum)>{ksmc}</th>
              <td>
                <div>姓名</div>
                <div>手机号</div>
              </td>
              <TD zbrArr={trow}></TD>
            </tr>
          )
        }
      },this)
    }
  }
}

class TD extends React.component {
  render() {
    const {zbrArr} = this.props;
    return {
      zbrArr.map((zbr, idnex) => {
        let zbdh="";
        if (zbr.zbdh=""){

        } else {
          zbdh="(" + zbr.zbdh + ")";
        }
        return (
          <td>
            <div>{zbr.zbxm}</div>
            <div>{zbr.zbsjh}{zbdh}</div>
          </td>
        )
      },this)
    }
  }
}

根目录下的index.js

const { Provider } = mobxReact;
const Report = ecodeSDK.imp(Report);
const allStore = ecodeSDK.imp(allStore);

class Root extends React.Component {
  render() {
    return {
      <Provider {...allStore}>
        <Report {...this.props} />
      </Provider>
    }
  }
}

ecodeSDK.setCom('${appId}', 'report', Root);

根目录下的register.js

ecodeSDK.rewriteRouteQueue.push({
  fn: (params) => {
    const { Com, Route, nextState } = params;
    const cpParams = {
      path: 'main/css/app',
      appId: '${appId}',
      name: 'report',
      node: 'app',
      Route,
      nextState
    }
    if (ecodeSDK.checkPath(cpParams)) {
      const acParams = {
        appId: cpParams.appId,
        name: cpParams.name,
        params: params,
        isPage: true,
        noCss: true,
      }
      return ecodeSDK.getAsyncCom(acParams);
    }
    return null;
  },
  order:2,
  desc:''
});

浏览器路由地址
/wui/index.html#/main/css/app/{文件夹id}_report
/spa/custom/static/index.html#/main/css/app/{文件夹id}_report

5. Action接口动作-流程&建模

6. 定时任务

7. 后端接口拦截

8. 后端API接口发布

9. WebService接口

10. 相关文档

E9组件：https://e-cloudstore.com/e9/index.html

Ecode: https://e-cloudstore.com/doc.html

流程：https://e-cloudstore.com/doc.html

建模：参考代码块右侧说明
